YOOBIC BI

Welcome to the YOOBIC BI documentation.

The YOOBIC BI documentation is designed for the use of BI leaders who are interested in building custom BI reports or dashboards using YOOBIC data or by merging data collected by YOOBIC with their own data collected from other tools (e.g. CRM).

This documentation will provide an overview of YOOBIC BI design, tables and provide sample usages for each table, allowing you to easily implement business intelligence.

Below is a list of recent enhancements/changes to the YOOBIC BI.

March 12, 2026

• Added smartquiz_points on users table.

October 25, 2025

• Add category_id column on events table.

March 12, 2024

• Add new courses_learning_paths table.

October 23, 2023

• Add da, fi, nb and sv fields on translations.

September 1, 2023

• Add _lmt and _ect indexes to missionsdata table.

June 27, 2023

• Add new campaign_questions table.

June 25, 2023

• Add new campaigns_scorm table.

• Add new scorm_registrations table.

June 19, 2023

• Add index information for the following tables campaigns, inventory, inventory_data, missions, missionsdata, photos, translations

May 10, 2023

• Add new campaigns_archive table.

March 28, 2023

• Add new activities table.

• Add new battles_activity table.

March 14, 2023

• Add new skus_image_recognition table.

• Add new kpis_image_recognition table.

February 21, 2023

• Add new missionsdata_image_recognition table.

January 04, 2023

• Add new store_ratings table.

• Add new photos_geoloc table.

• Add new missionsdata_product table.

• Add new mission_workflows table.

January 03, 2023

• Add new inventory_data table.

• Add new inventory_product table.

• Add new lessonsdata_confidence_quiz table.

• Add new lessonsdata_confidence_quiz_history table.

• Add new mission_action_plans table.

• Add new mission_todos table.

January 02, 2023

• Add new campaigns_plans table.

• Add new communities table.

• Add new community_comments table.

• Add new community_news table.

• Add new events table.

December 13, 2022

• Added support for new question type advanced formula missionsdata.

November 15, 2022

• Added is_rating_enabled field on plans.

• Added is_questions_enabled field on plans.

• Added is_featured field on plans.

• Added time_constraint_mode field on plans.

October 25, 2022

• Updated courses table.

October 20, 2022

• Add new questions table.

October 13, 2022

• Add new answers table.

July 24, 2022

• Add new weekly_user_activity table.

May 17, 2022

• Add recurrence_type field on campaigns.

• Add is_auto_renew field on campaigns.

February 20, 2022

• Add new visits_custom_data table.

July 18, 2021

• Add new lessonsdata_history table.

July 8, 2021

• Add new users_custom_data table.

• Add new stores_custom_data table.

May 18, 2021

• Add device field on users.

• Add is_boost field on users.

• Add role_id field on users.

• Add new client_role_extension table.

March 16, 2021

• Add out_of_stock field on products.

January 17, 2020

• Add terms_of_acceptance_date field on users.

• Add new tenants table.

November 25, 2020

• Add new users_archive table.

• Add new stores_archive table.

November 19, 2020

• Add capacity field on stores endpoint.

• Add last_seen field on users.

• Add mobile_version field on users.

• Add desktop_version field on users.

August 17, 2020

• Add action_plan_progress missions table.

July 05, 2020

• Add waitlist-customers table.

• Add waitlist-yoobic-visits table.

May 11, 2020

• Add timezone stores.

February 25, 2020

• Add store_type_id geofilters.

November 4, 2019

• Add new missionsdata_pricecheck table.

October 2, 2019

• Add store_id visit.

• Add user_id visit.

• Add creator_id visit.

September 5, 2019

• Add new visit table.

August 8, 2019

• Add new inventory table.

August 5, 2019

• Add scoring field on campaigns.

• Add recurring field on campaigns.

• Add body field on notifications.

• Add user_ids field on notifications.

• Add badge_type field on notifications.

• Add manufacturer field on products.

• Add brand field on products.

• Add category field on products.

• Add images field on products.

July 9, 2019

• Add authorised_viewers field on news.

• Add description field on news.

July 3, 2019

• Add users_count field on groups.

• Add groups_news table.

June 13, 2019

• Add republish_when_started field on missions.

• Add republish_when_finished field on missions.

• Add booked_until field on missions.

• Change validated to compliant field on missions.

• Add compliant_by_default field on missions.

• Add reason_not_compliant field on missions.

• Add republished_with_answers field on missions.

• Add original_mission_id field on missions.

• Add original_reason_not_compliant field on missions.

June 3, 2019

• Add average_completed_lesson field on plans.

• Add photo field on stores.

• Add address field on users.

• Add telephone field on users.

• Add photo field on users.

May 16, 2019

• Add algorithm_results table.

• Add duration field on missions.

• Add duration field on lessons.

May 8, 2019

• Add markup_url field on photos.

Mar 24, 2019

• Add vip field on stores.

Mar 7, 2019

• Add salesdata table.

Jan 6, 2019

• Add properties field on stores.

The YOOBIC BI database is available as a Database-as-a-Service (DaaS), in the form of a single tenant mySQL database.

The database is decoupled from the native database of the application and read only. Data is refreshed usually within minutes from the moment they are inserted to the application database. Our schema is mostly based on views instead of tables, which is transparent for most BI tools.

Data-as-a-Service brings the notion that data quality can happen in a centralized place, cleansing and enriching data and offering it to different systems, applications or users, irrespective of where they were in the organization or on the network. As such, data-as-a-service solutions provide the following advantages:

• Agility - Customers can move quickly due to the simplicity of the data access and the fact that they don't need extensive knowledge of the underlying data. If customers require a slightly different data structure or have location specific requirements, the implementation is easy because the changes are minimal.

• Cost-effectiveness - No need for additional storage (sftp), or security measures.

• Data quality - Access to the data is controlled through the data services, which tends to improve data quality, as there is a single point for updates. Once those services are tested thoroughly, they only need to be regression tested, if they remain unchanged for the next deployment.

In a nutshell:

• YOOBIC BI DaaS is not the native database of the application, and it is managed on our side as a decoupled architecture, with a strong contract on the schema so that it is not directly affected by changes in the underlying application and remains stable over time.

• YOOBIC BI DaaS is a read only, secured single tenant database that is completely re-constructed every night, so there is no risk to jeopardise or lose data.

• YOOBIC BI DaaS offers strongly typed data rather than error-prone flat files (boolean, double precision, binary data, json fields etc...).

• YOOBIC BI DaaS is hosted as a service and it is guaranteed to be always available.

• YOOBIC BI DaaS offers efficient data transfers. The fact that queries can be runned against the tables makes it more efficient for transferring data (as only the relevant data can be pulled out by a simple query, unlike flat files that need to be all uploaded first before they are transformed). The code that needs to be written for data transformation becomes a lot easier, and can be seamlessly integrated with standard ETL pipelines tools.

YOOBIC BI DaaS uses SSL to secure connections by encrypting the data in transit and protecting it from snooping on the wire.
YOOBIC BI DaaS is configured to use and enforce SSL and secure connections.

If the client connecting to YOOBIC BI DaaS is not configured to use SSL the connection will be rejected.
No one, even with access to the network, can watch any of the traffic and inspect the data being sent or received between client and server.

YOOBIC BI DaaS supports encrypted connections between clients and the server using the TLS (Transport Layer Security) protocol. TLS is sometimes referred to as SSL (Secure Sockets Layer) but it does not actually use the SSL protocol for encrypted connections because its encryption is weak, and only uses TLS.

TLS uses encryption algorithms to ensure that data received over the network can be trusted. It has mechanisms to detect data change, loss, or replay. TLS also incorporates algorithms that provide identity verification using the X.509 standard.

The YOOBIC BI schema is organised around three foundational domains and three product pillars. The diagrams below outline the main tables in each area and how they relate to one another, providing a high-level map before the per-table reference that follows. Note that the diagrams are not exhaustive — they show only a representative subset of columns per table to keep relationships readable; refer to the per-table sections below for the complete column list.

• Users & Access — tenants, users, groups, groups_users, audiences, communities, community_members, competencies, user_competency_score.

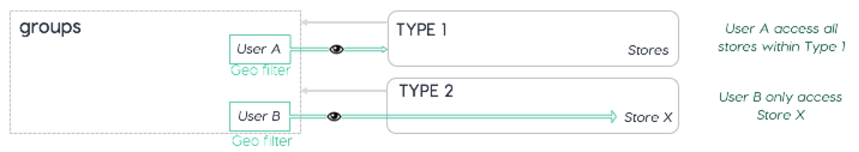

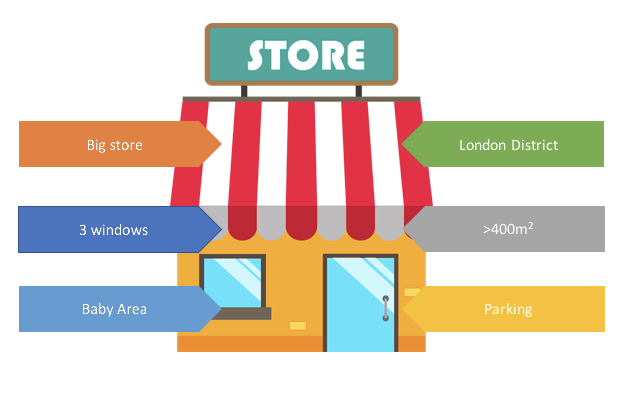

• Stores — regions, stores, geofilters, store_types, store_type_groups.

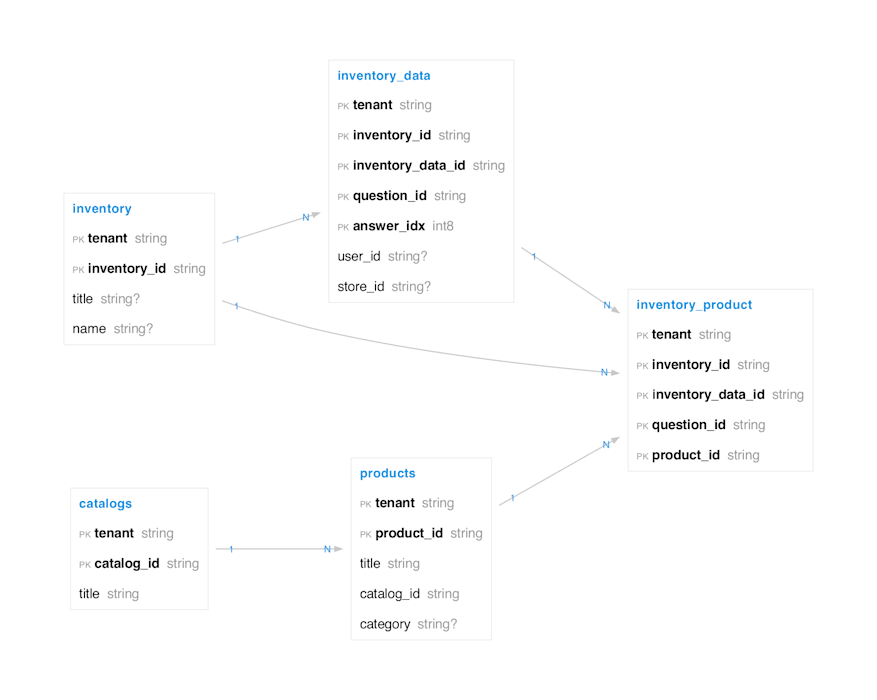

• Inventory & Products — inventory, inventory_data, inventory_product, catalogs, products.

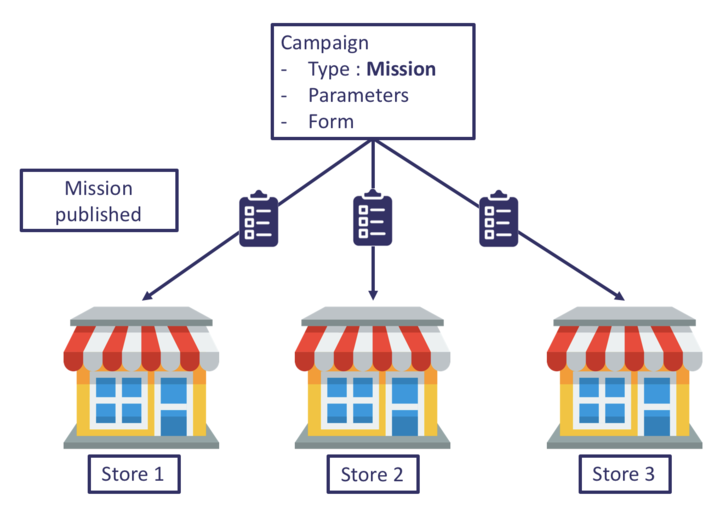

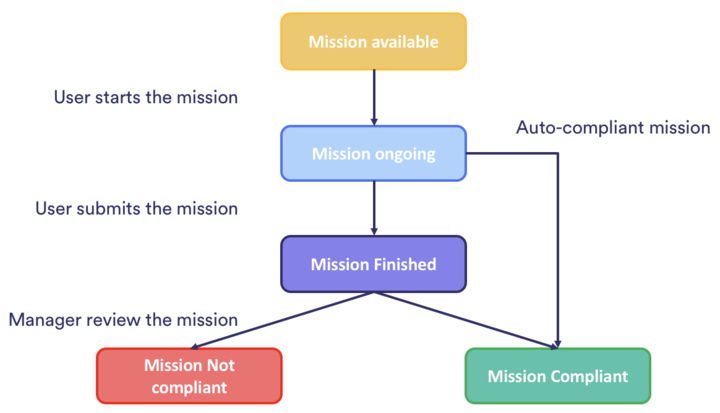

• Work (missions and campaigns) — missions, missionsdata, campaigns, campaign_questions, campaigns_plans, plans, mission_todos, mission_action_plans, mission_workflows, step_workflows.

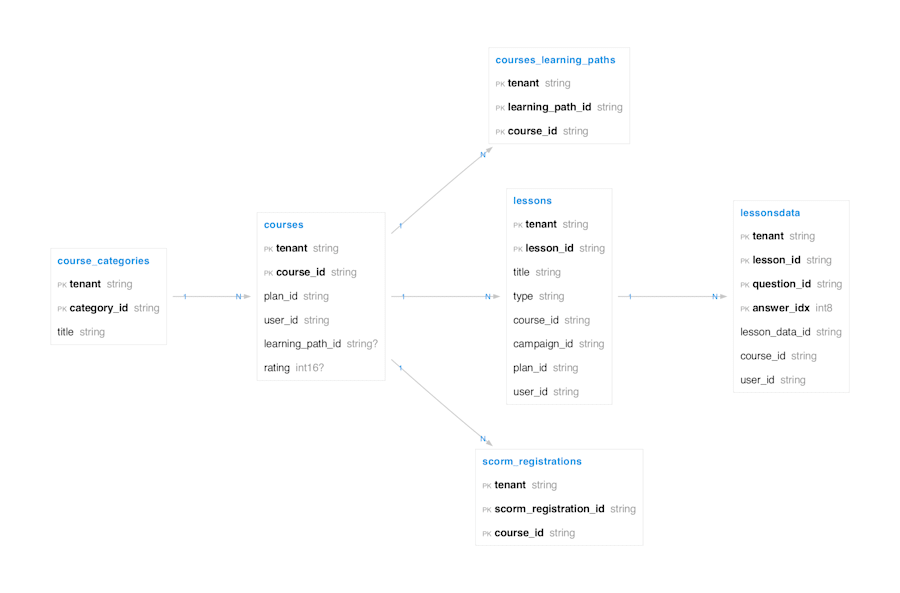

• Learn (lessons, courses, and learning paths) — courses, course_categories, courses_learning_paths, lessons, lessonsdata, scorm_registrations.

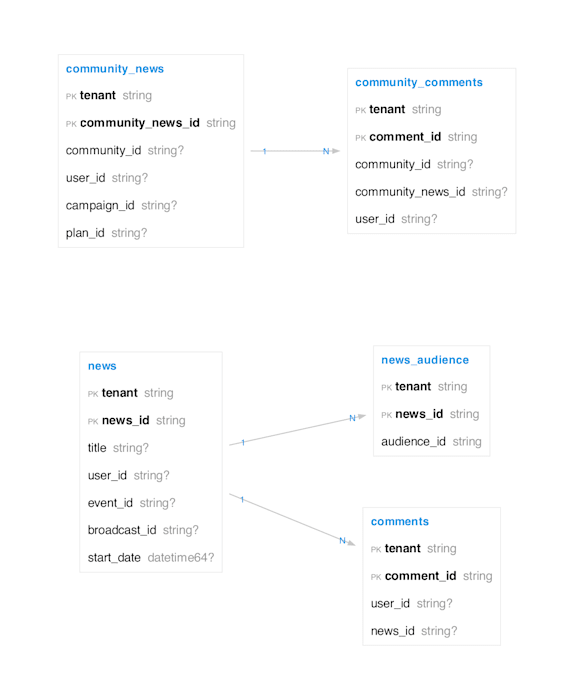

• Comms (news and community) — news, news_audience, comments, community_news, community_comments.

This table provides information about engagement activities performed by users in the app, such as viewing or liking a post. It also contains the last attendance status of users for the events they receive in their calendar: for activities with entity_name = calendarEvents, action can be join, maybe, or decline.

Table activities

Column	Type	Description
activity_id	varchar(24)	Unique ID of the activity
user_id	varchar(24)	User who did the activity
entity_name	varchar(100)	Entity of the activity (can be missions, feeds, notifications, files, calendarEvents…)
entity_id	varchar(24)	Id of the entity that was interacted with during this activity
action	varchar(100)	Action performed by the user (can be view, like …)
_ect	timestamp	Creation date of the activity record
_lmt	timestamp	Last update date of the activity record

This table contains information about aisles in stores, including their titles and delays for withdrawal and markdown.

Table aisles

Column	Type	Description
aisle_id	varchar(24)	Unique ID of the aisle
store_id	varchar(24)	ID of the store
title	varchar(255)	Title of the aisle
withdrawal_delay	tinyint unsigned	Delay for withdrawal
markdown_delay	tinyint unsigned	Delay for markdown
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (aisle_id, tenant)

Indexes:

• tenant_index on tenant

Statistics on the image recognition algorithm usage.

Table Algorithm

Column	Type	Description
algorithm_result_id	varchar(24)	Unique id of the algorithm result
button_push_date	timestamp	When the user started to upload pictures
publish_date	timestamp	When the uploaded pictures were submitted to the IR algo
start_date	timestamp	When the IR algorithm started
finished_date	timestamp	When the IR algorithm finished
mission_id	varchar(24)	Unique id of the mission
question_id	varchar(40)	Id of the question
image_count	string	The number of uploaded pictures
detection_duration	number	Time spent by the IR algorithm (in seconds)
tenant	varchar(24)	Tenant name

Answers are the users’ replies to the questions raised by their colleagues in the Questions menu. Other users can vote for answers they think are best, like them, and a user with the right permission can also validate an answer to indicate it is the right or best one.

Table answers

Column	Type	Description
answer_id	varchar(24)	Unique id of the answer
question_id	varchar(24)	Reference to the question
user_id	varchar(24)	User id answering this question
text	text	The answer
image	varchar(255)	The url to the image
is_verified	boolean	Whether or not this is a verified answer
user_verified	varchar(24)	User id verifying this answer
likes	smallint	Likes count
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

This table contains information about audiences, including their names, visibility, and rules for users and stores.

Table audiences

Column	Type	Description
audience_id	varchar(24)	Unique ID of the audience
name	varchar(255)	Name of the audience
public	tinyint(1)	Indicates if the audience is public
user_id	varchar(24)	ID of the user
target	varchar(10)	Target of the audience
type	varchar(10)	Type of the audience
users_audience_rules	json	Rules for users
stores_audience_rules	json	Rules for stores
created_from	varchar(100)	Source of creation
hidden	tinyint(1)	Indicates if the audience is hidden
total_users	smallint	Total number of users
total_stores	smallint	Total number of stores
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (audience_id, tenant)

Indexes:

• tenant_index on tenant

This table contains information about courses involved in battles, including assignment dates and progress.

Table battle_courses

Column	Type	Description
course_id	varchar(24)	Unique ID of the course
plan_id	varchar(24)	ID of the plan
user_id	varchar(24)	ID of the user
assignment_date	timestamp	Date of assignment
rating	tinyint unsigned	Rating of the course
comment	varchar(255)	Comment on the course
finished_lessons	tinyint unsigned	Number of finished lessons
progress	decimal(3,2)	Progress of the course
start_date	timestamp	Start date of the course
finished_date	timestamp	Finished date of the course
due_date	timestamp	Due date of the course
discover	tinyint(1)	Indicates if discovered
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (course_id, tenant)

Indexes:

• courses_lmt_index on _lmt

• courses_plan_id_index on plan_id

• courses_user_id_index on user_id

• tenant_index on tenant

This table provides information about the battles initiated and finished by the users. These battles involve a number of points that will be gained by the winner of the battle, and lost by the loser of the battle, and a plan that is used for the battle.

Table battles_activity

Column	Type	Description
battle_activity_id	varchar(24)	Unique ID of the battle activity. This is unique per user and per battle
user_id	varchar(24)	User who did the battle. there are always two users involved in a battle, so you will see 2 rows per battle.
plan_id	varchar(24)	Id of the battle
plan_id_original	varchar(24)	Id of the original plan used for the battle
status	varchar(100)	Status of the battle (can be done or pending)
battle_points	smallint	Number of points gained or lost by the user
_ect	timestamp	Creation date of the activity record
_lmt	timestamp	Last update date of the activity record

This table contains information about broadcasts, including their duration and URLs.

Table broadcasts

Column	Type	Description
broadcast_id	varchar(24)	Unique ID of the broadcast
duration	smallint unsigned	Duration of the broadcast
url	varchar(255)	URL of the broadcast
creator_id	varchar(24)	ID of the creator
_lmt	timestamp(3)	Last update date
_ect	timestamp(3)	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (broadcast_id, tenant)

Indexes:

• tenant_index on tenant

This table contains the history of campaign reviews, including review dates and actions.

Table campaign_reviews_history

Column	Type	Description
campaign_id	varchar(24)	Unique ID of the campaign
review_id	varchar(24)	Unique ID of the review
review_order	tinyint unsigned	Order of the review
review_date	timestamp	Date of the review
user_id	varchar(24)	ID of the user
action	varchar(20)	Action taken
tenant	varchar(32)	Tenant name

Primary Key: (campaign_id, review_id, tenant)

Indexes:

• tenant_index on tenant

A campaign is the main structure used to send tasks to frontline teams and collect data about how they execute them. It is essentially a configurable form with instructions and fields (checklists, buttons, photos, open text, etc.) that users fill in from the field. They are used for many operational needs like audits, promotions, checklists, surveys, health and safety monitoring, and other day-to-day activities.

There are 4 different types of campaigns available in YOOBIC:

• Quick task

• Memo

• Form

• Workflow

Archived campaigns are visible in the campaigns_archive table.

Table campaigns

Column	Type	Description
campaign_id	varchar(24)	Unique id of the campaign
title	varchar(255)	The campaign title
tags	json	The list of tags
type	varchar(24)	The campaign type (mission, service, todo, poll, lesson, visit)
scoring	boolean	True if scoring is enabled for missions from this campaign, false otherwise
recurring	boolean	True if this campaign is recurring, false if it is a one-off campaign
is_active	boolean	If is_active =1 and is achived is not equal to 1 then the Campaign is active. If is_active is not equal to one and is_archived is not equal to one then the Campaign status is Draft. Only for campaigns of type mission, service, poll and todo
is_archived	boolean	If is_archived = 1 then the Campaign is paused. Only for campaigns of type mission, service, poll and todo.
recurrence_type	varchar(20)	One of permanent (missions are automatically republished once started or finished), oneoff (missions can only be done once), or recurring (missions are published automatically on a set frequency)
is_auto_renew	boolean	1 if recurrence_type = permanent, 0 if recurrence_type = oneoff or recurring
todo_description	text	Instructions for quick tasks campaigns
todo_count	smallint	Number of tasks in a Quick task campaign
todo_has_documents	boolean	True if there are documents attached for quick task
has_header_background_todo	boolean	True if uses a header background for quick task
todo_background_color	nvarchar(10)	Hex color code of the background for quick task
share_newsfeed	boolean	Option to publish a post in the newsfeed when the campaign is published (can occur only once)
base_language	nvarchar(5)	Source language used for this campaign (can be empty if the campaign is not translated)
languages	json	List of translated languages if the campaign is translated.
priority	boolean	Priority level of the campaign between 1 (high) and 4 (low)
without_validation	boolean	1 if the campaign doesn't need validation
category_id	nvarchar(24)	Id of the category of the campaign
valid_from	timestamp	Date when the tasks of the campaign are available
valid_until	timestamp	Date when the tasks of the campaign are not available anymore
audience_id	nvarchar(24)	If of the audience of the campaign (new audience implemented only for Quick tasks for now)
reviewer_id	nvarchar(24)	User id of the user who can review and approved changes made on a campaign
review_state	nvarchar(50)	Status of the latest review of the campaign
review_message	text	Comment on the latest campaign review
recurrence_frequency	nvarchar(50)	Frequency parameter of the campaign
recurrence_interval	tinyint	Interval of time of a new occurence of a recurrent campaign
is_workflow	boolean	1 if if the campaign has a workflow
steps_count	tinyint	Number of steps for this workflow
news_id	nvarchar(24)	Id of the post in the newsfeed when the campaign has been published (only one post per campaign)
_ect	timestamp	Creation date
duration	int	Duration of the campaign in minutes
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

Table indexes:

• PRIMARY KEY (campaign_id,tenant)

• INDEX _ect

• INDEX title

• INDEX type

Table campaign_questions

Contains the fields of the campaigns created in YOOBIC. It contains information about each field or question that are used to collect data through missions or lessons.

The question_id is the reference of the field for this campaign_id when data is collected in the missionsdata table

Column	Type	Description
campaign_id	varchar(24)	Unique id of the campaign
question_id	varchar(36)	Unique Id of the question
question_type	varchar(20)	Type of the field
title	varchar(255)	Question title
description	TEXT	Question description
values	JSON	Possible values to the question. Only if question_type supports a list of prefilled values (lists, buttons, …)
mandatory	tinyint	1 if the question is mandatory
hide_mobile	tinyint	1 if the question is hidden in the missions. This is typically used to hide a question for end users without deleting the question itself and lose the associated data
page_number	tinyint	Page number
question_number	tinyint	Ordinal number of the question in the page
tenant	varchar(24)	Tenant name

Contains the archived campaigns.

Table campaigns_archive

Column	Type	Description
campaign_id	varchar(24)	Unique id of the campaign
title	varchar(255)	The campaign title
tags	json	The list of tags
type	varchar(24)	The campaign type (mission, service, todo, poll, lesson, visit)
scoring	boolean	True if scoring is enabled for missions from this campaign, false otherwise
recurring	boolean	True if this campaign is recurring, false if it is a one-off campaign
is_active	boolean	If is_active =1 and is achived is not equal to 1 then the Campaign is active. If is_active is not equal to one and is_archived is not equal to one then the Campaign status is Draft. Only for campaigns of type mission, service, poll and todo
is_archived	boolean	If is_archived = 1 then the Campaign is paused. Only for campaigns of type mission, service, poll and todo.
recurrence_type	varchar(20)	One of permanent (missions are automatically republished once started or finished), oneoff (missions can only be done once), or recurring (missions are published automatically on a set frequency)
is_auto_renew	boolean	1 if recurrence_type = permanent, 0 if recurrence_type = oneoff or recurring
todo_description	text	Instructions for quick tasks campaigns
todo_count	smallint	Number of tasks in a Quick task campaign
todo_has_documents	boolean	True if there are documents attached for quick task
has_header_background_todo	boolean	True if uses a header background for quick task
todo_background_color	nvarchar(10)	Hex color code of the background for quick task
share_newsfeed	boolean	Option to publish a post in the newsfeed when the campaign is published (can occur only once)
base_language	nvarchar(5)	Source language used for this campaign (can be empty if the campaign is not translated)
languages	json	List of translated languages if the campaign is translated.
priority	boolean	Priority level of the campaign between 1 (high) and 4 (low)
without_validation	boolean	1 if the campaign doesn't need validation
category_id	nvarchar(24)	Id of the category of the campaign
valid_from	timestamp	Date when the tasks of the campaign are available
valid_until	timestamp	Date when the tasks of the campaign are not available anymore
audience_id	nvarchar(24)	If of the audience of the campaign (new audience implemented only for Quick tasks for now)
reviewer_id	nvarchar(24)	User id of the user who can review and approved changes made on a campaign
review_state	nvarchar(50)	Status of the latest review of the campaign
review_message	text	Comment on the latest campaign review
recurrence_frequency	nvarchar(50)	Frequency parameter of the campaign
recurrence_interval	tinyint	Interval of time of a new occurence of a recurrent campaign
is_workflow	boolean	1 if if the campaign has a workflow
steps_count	tinyint	Number of steps for this workflow
news_id	nvarchar(24)	Id of the post in the newsfeed when the campaign has been published (only one post per campaign)
_ect	timestamp	Creation date
duration	int	Duration of the campaign in minutes
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

View campaigns_active

The list of campaigns having a mission performed during the last month, group by days

Column	Type	Description
campaign_id	varchar(24)	Unique id of the campaign
title	varchar(255)	Campaign title
COUNT	varchar(100)	Number of missions performed for the campaign
date_day	varchar(10)	Day
tenant	varchar(24)	Tenant name

Table campaigns_plans

A plan is a module of learning in YOOBIC. Each plan contains different lessons that are identified by a campaign_id

Column	Type	Description
campaign_id	varchar(24)	Unique id of the campaign
plan_id	varchar(24)	Unique id of the plan
lesson_type	nvarchar(20)	Lesson can be of type: document, timedquizz, video, quizz, scorm, confidencequiz
badge_id	nvarchar(24)	List of the badges that can be earned by passing a lesson in a plan
show_answers	boolean	Indication if show answers option is enabled for the plan (value: 1) or not (value: 0). Enable the user to see the correct answers after he submitted his answer
prevent_retry	boolean	Indication if prevent retry option is enabled for the plan (value: 1) or not (value: 0). A lesson can be completed as many times as the user wants except if the Prevent Retry button has been toggled by the course creator.

View campaigns_progress

Contains progress data for missions at campaign level

Column	Type	Description
campaign_id	varchar(24)	The campaign unique id
title	varchar(255)	The campaign title
count_finished	decimal(42,0)	Number of finished missions in campaign
count_inprogress	decimal(42,0)	Number of mission in progress
tenant	varchar(24)	Tenant name

Table campaigns_scorm

The table contains a mapping between the lesson created in YOOBIC and the associated scorm content.

Column Name	Data Type	Description
campaign_id	VARCHAR(24)	A unique identifier for the campaign. This is an alphanumeric string with a maximum length of 24 characters. Each campaign has a unique campaign_id.
scorm_cloud_id	VARCHAR(36)	The unique identifier for the associated SCORM cloud object. This is an alphanumeric string with a maximum length of 36 characters. Each SCORM cloud object has a unique scorm_cloud_id.
page_number	TINYINT UNSIGNED	The number of the page in the campaign.
question_number	TINYINT UNSIGNED	The number of the question in the campaign.
title	VARCHAR(255)	The title of the campaign. This is a string with a maximum length of 255 characters.
scorm_title	VARCHAR(255)	The title of the SCORM content. This is a string with a maximum length of 255 characters. The title can be NULL indicating that the SCORM title is not specified or the content doesn't have a title.
tenant	VARCHAR(32)	The identifier for the tenant. This is a string with a maximum length of 32 characters. Each tenant has a unique identifier.

View campaigns_tags

Maps campaign's tags to rows, so that each row includes campaign id with a corresponding tag

Column	Type	Description
campaign_id	varchar(24)	The campaign unique id
tag	longtext	Campaign tag

Holds a list of catalogs and their relevant data. Each catalog contains a list of products.

Table catalogs

Column	Type	Description
catalog_id	varchar(24)	Unique id of the catalog
title	varchar(255)	The catalog title
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

Exposes User’s role and role extension information. Roles and Role Extension are used to identify the type of a license of a user.

Column	Type	Description
role_id	varchar(24)	Unique id of the role
role	varchar(255)	User's role
role_extension	varchar(255)	User's role extension. Sub type of roles
user_id	varchar(24)	Unique user id
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

Get all feeds comments.

Table comments

Column	Type	Description
comment_id	varchar(24)	Unique id of the comment
news_id	varchar(24)	Related feed reference
user_id	varchar(24)	Related user reference
date	timestamp	Comment's creation date
text	varchar(255)	comment text
text_sanitize	timestamp	Text comment without HTML
language	varchar(10)	Comment text automatically detected language
sentiment	decimal(2,1)	Comment text sentiment represented by a number between -1 and 1
mentions	smallint	Users tagged with @name in the comment
replies_count	smallint	How many replies were done to one comment
_lmt	timestamp	Comment's last update date
_ect	timestamp	Comment's creation date

Table communities

Contains the list of the communities created in YOOBIC

Column	Type	Description
community_id	varchar(24)	Unique ID of the community
name	varchar(255)	Name of the community
type	varchar(255)	Type of the community
user_id	varchar(24)	ID of the user
audience_id	varchar(24)	ID of the audience
open_audience_id	varchar(24)	ID of the open audience
managers	smallint unsigned	Number of managers
members	smallint unsigned	Number of members
leavers	smallint unsigned	Number of leavers
image	varchar(255)	Image of the community
description	text	Description of the community
allow_post	tinyint(1)	Indicates if posting is allowed
disable_notifications	tinyint(1)	Indicates if notifications are disabled
hide_newsfeed	tinyint(1)	Indicates if the newsfeed is hidden
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (community_id, tenant)

Indexes:

• tenant_index on tenant

Table community_comments

Contains the comments made by users in the communities' posts

Column	Type	Description
comment_id	varchar(24)	Unique id of the community
user_id	nvarchar(24)	Unique id of the user who created the comment
community_id	nvarchar(24)	Related community reference
community_news_id	nvarchar(24)	Related feed post reference
language	nvarchar(4)	Comment text automatically detected language
date	timestamp	Comment's creation date
text	text	Comment's text
text_sanitize	text	Comment's text without html
sentiment	decimal(2,1)	Comment text sentiment represented by a number between -1 and 1
mentions	smallint	Number of users tagged with @name in the comment
replies	smallint	Number of replies to this comment
_ect	timestamp	Creation date
_lmt	timestamp	Last update date

Table community_news

Contains the list of the posts made in Communities.

Column	Type	Description
community_news_id	varchar(24)	Unique id of the community news
user_id	nvarchar(24)	Unique id of the user who published the news
community_id	nvarchar(24)	Unique id of the community where news was posted
campaign_id	nvarchar(24)	Unique id of the campaign
plan_id	nvarchar(24)	Unique id of the plan
description	text	The description of the news feed
description_sanitize	text	The description of the news feed without html
image	nvarchar(255)	Link to uploaded image
likes	smallint	News item likes count
views	smallint	Views item likes count
tags	json	Tags of the newsTags (#example) added to the post
language	nvarchar(4)	Post text automatically detected language
enable_translation	boolean	True if translation of the post is authorized
disable_notifications	boolean	True if notification for the post are deactivated
start_date	timestamp	Date relevant for the publication of the post. This is a separate field than the ect which might have different values
_ect	timestamp	Creation date
_lmt	timestamp	Last update date

A competency of a course allows measuring the success rate of a learner on all courses linked to that competency. Each course can be linked to only one competency.

Table competencies

Column	Type	Description
competency_id	varchar(24)	Unique ID of the competency
title	varchar(255)	Title of the competency
description	varchar(255)	Description of the competency
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (competency_id, tenant)

Indexes:

• competencies_tenant_index on tenant

Category in courses allows grouping available courses by topics or themes in the Discover section of the app. Each course can be linked to only one category.

Table course_categories

Column	Type	Description
category_id	varchar(24)	Unique ID of the category
title	varchar(255)	Title of the category
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (category_id, tenant)

Indexes:

• tenant_index on tenant

When a plan is assigned to a user it creates a course.

Table courses

Column	Type	Description
course_id	varchar(24)	Unique id of the course
plan_id	varchar(24)	Unique id of the plan
user_id	varchar(24)	Unique id of the user
assignment_date	timestamp	Date when the user has been assigned to the plan
rating	tinyint	Rating between 1 to 5 given by a user when the course is completed.
comment	varchar(255)	Comment given by a user when the course is completed.
finished_lessons	tinyint	Number of lessons finished by a user in the course.
progress	decimal(3,2)	Number of finished lessons / total number of lessons in the course
start_date	timestamp	Date when the user started the course
finished_date	timestamp	Date when the user completed the course
due_date	timestamp	Due date of the course
discover	boolean	True if the user started the course from the discovery section
learning_path_id	varchar(24)	Unique id of the learning path
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

This table archives course data, including assignment dates and progress.

Table courses_archive

Column	Type	Description
course_id	varchar(24)	Unique ID of the course
plan_id	varchar(24)	ID of the plan
user_id	varchar(24)	ID of the user
assignment_date	timestamp(3)	Date of assignment
rating	tinyint unsigned	Rating of the course
comment	varchar(255)	Comment on the course
finished_lessons	smallint unsigned	Number of finished lessons
progress	decimal(3,2)	Progress of the course
start_date	timestamp(3)	Start date of the course
finished_date	timestamp(3)	Finished date of the course
first_finished_date	timestamp(3)	First finished date of the course
due_date	datetime(3)	Due date of the course
discover	tinyint(1)	Indicates if discovered
learning_path_id	varchar(24)	ID of the learning path
is_learning_path	tinyint(1)	Indicates if part of a learning path
points_course	mediumint	Points for the course
_lmt	timestamp(3)	Last update date
_ect	timestamp(3)	Creation date
wall_time	timestamp(3)	Wall time
tenant	varchar(32)	Tenant name

Primary Key: (course_id, tenant)

Indexes:

• courses_lmt_index on _lmt

• courses_plan_id_index on plan_id

• courses_user_id_index on user_id

• tenant_index on tenant

The courses_learning_paths table establishes a relationship between courses and learning paths. It maps which courses are part of specific learning paths, facilitating the organization of courses into structured educational journeys for users.

Table courses_learning_paths

Column	Type	Description
course_id	varchar(24)	The unique identifier for courses. This is a foreign key that references the course_id in the courses table.
learning_path_id	varchar(24)	foreign key to learning_path_id in the plans table.
tenant	varchar(24)	Tenant name

Datasets are where all your data is stored. They have some similarities to spreadsheets, for example they look similar and support some of the same functions and formulas. But, in terms of power, efficiency, and elasticity, datasets tend to behave more like a database. Datasets in Yoobic can used all the different data types available in a Yoobic Campaign.

Datasets can be used to:

• Display your data dynamically in Yoobic’s missions

• Update dynamically your data based on Yoobic’s missions

• Filter, sort, summarise, and link data

• Preserve data integrity

• Trigger automations and run calculation

Endpoint: Inventory

YOOBIC’s dataset collection is stored in the inventory collection therefore we refer to the inventory endpoint to create or update a dataset.

Custom Model definition

A dataset is identified in YOOBIC’s public API by a custom_model_id . We refer to datasets as a Custom Model because each dataset object is customizable (different field type available for each of the fields). Consequently, each row of a dataset (aka Custom_model) is referred to as a custom_model_instances.

How to create new instances in a dataset

Import a csv/excel file containing in the header the name of the field and in the cells the value you want to import. If you are not sure of the format of the csv/excel file, we recommend you to first export your dataset to a csv/excel file and then to use this file as a template for the import.

How to update existing instances in a dataset

Import a csv/excel file containing in the header the name of the field and in the cells the value you want to import. If you wish to update the value, you have to provide in the custom_model_instances_id column the value of the instance you wish to update. It’s a unique identifier generated by YOOBIC. The easiest way to do it is to export the existing dataset, then to modify the value directly in the file and finally to import it into YOOBIC.

Table inventory_data

Column	Type	Description
inventory_data_id	varchar(24)	Unique id of the inventory data
inventory_id	varchar(24)	Unique id of the inventory
user_id	varchar(24)	Unique id of the owner of the inventory data
store_id	varchar(24)	Unique id of associated store
question_id	varchar(40)	Id of the question
question	varchar(255)	Question content
answer	text	Answer to the question
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
answer_idx	tinyint(3,0)	Answer index
tenant	varchar(24)	Tenant name

Events can be created and managed through the YOOBIC app and are displayed in the calendar. Events can be public (visible to all users sharing at least one group with it) or private (visible only to users invited to it).

Table events

Contains the list of the events created in YOOBIC.

Column	Type	Description
event_id	varchar(24)	Unique id of the event
creator_id	nvarchar(24)	Unique user id of the creator of the event
title	nvarchar(255)	name of the event
description	nvarchar(255)	Description of the event
start_date	timestamp	Start date of the event
end_date	timestamp	End date of the event
documents_count	smallint	Number of documents attached to the event
photos_count	smallint	Number of pictures attached to the event
users_count	smallint	Number of users who can join the event
videos_count	smallint	Number of videos attached to the event
audios_count	smallint	Number of audio file attached to the event
is_shared	boolean	True if the event was shared in the newsfeed
is_store_shared	boolean	True if the event was shared to a store
store_id	nvarchar(24)	Unique id of the site attached to the event
virtual_room_url	nvarchar(255)	URL of the event if it's a virtual event
address	nvarchar(255)	Address of the event if it's a physical event
category	nvarchar(255)	Category of the event
category_id	nvarchar(24)	Unique id from the course_categories table. Information about the category can be found in the course_categories table.
event_type	nvarchar(255)	An event can be of type public or private. If it's a public event then anyone can join if it's a private event then only the users authorised to join can join the event
_ect	timestamp	Creation date
_lmt	timestamp	Last update date

Files provides information about the external files used in the application.

Table files

Column	Type	Description
file_id	varchar(24)	Unique id of the file
size	int(11)	The size of the file in bytes
filename	varchar(255)	The name of the file
download_url	varchar(255)	The url of the file
mime_type	varchar(255)	The mime type of the file
views_count	smallint	Count of unique users who opened the file
users_count	smallint	Number of users who can access the file based on their authorization rights.
is_document	boolean	The file has been created in the Document library.
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

provides a mapping between users and the stores they have permission to visit

• Each user may have more than one store mapped. If enabled, users could only book missions to the specified stores.

• Geographic filters are extremely important in Operations. They are what control which stores a user can or can't see.

• Geographic filters are assigned to stores and store types.

• There are two types of geographic filters: non-dynamic and dynamic. Non dynamic filters are made by attaching stores to a user, dynamic filters are made by attaching store types to a user.



• With the exception of Stores, geographic filters should always be dynamic. This is because it is easier to add a store to a type so that it inherits its geographic filter than it is to add a store to each geographic filter it needs to be in.

Table geofilters

Column	Type	Description
store_id	varchar(24)	Unique store id
store_type_id	varchar(24)	Unique store type id
user_id	varchar(24)	Unique user id
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

This table maps groups to sub-groups.

Table group_groups

Column	Type	Description
group_id	varchar(100)	ID of the group
sub_group_id	varchar(100)	ID of the sub-group
tenant	varchar(32)	Tenant name

Primary Key: (group_id, sub_group_id)

Indexes:

• sub_group_id_index on sub_group_id

• tenant_index on tenant

Groups are used to manage users. This is VERY important as Groups are what make using the application much simpler. By adding Users to Groups, when you need to modify sets of Users, you just change the groups properties and all the Users in the Group inherit these properties (much better than changing each individual user manually). Moreover, Groups allow to restrict visibility when some entities are shared (Missions, News, Documents, ...)

How do I structure my groups ?

Each Group usually corresponds to a population of Users (ex: Admin, HQ, VM Managers, Retail Area Managers, Stores, etc.).

General Group

Usually there is a general group, which has the name of the tenant. This group will contain all of the other Groups and will give the Users access to shared information.

Then you will usually find a Group for each type of user. These usually fall into one of these categories:

• Admin

• Area Managers

• HQ

• Itinerants

• Store Users

Table groups

Column	Type	Description
group_id	varchar(100)	Unique id
title	varchar(255)	Title of the group
description	varchar(255)	Description of the group
code	varchar(100)	The group code
icon_url	varchar(255)	The url of the icon
users_count	mediumint	Number of users in this group
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

A mapping between a news feed and the groups that are allowed to see it. Each news_id might have one or more groups mapped to it.

Table groups_users

Column	Type	Description
group_id	varchar(100)	Unique group id
news_id	varchar(24)	Unique news id
tenant	varchar(24)	Tenant name

matches the users to the groups they are in, with matching ids. The user id are duplicated in front of all the group ids they match (one user can be in several groups).

Table groups_users

Column	Type	Description
group_id	varchar(100)	Unique group id
user_id	varchar(24)	Unique user id
tenant	varchar(24)	Tenant name

Table kpis_image_recognition

This table contains information about the KPIs calculated by the Image recognition algorithms.

The KPIs with operator "count", "count_linear", and "presence" refer to a single sku_name which corresponds to the "name" of the SKU in the skus_image_recognition table. KPIs with other operators often refer to multiple SKUs and are presented with one row per SKU for this KPI, with an index.

kpi_type can be classes, numerator or denominator.

• classes refers to KPIs calculated on a simple list of SKUs.

• numerator and denominator refer to KPIs calculated on a comparison of two lists of SKUs.

For example, the KPI count_share will calculate the share of facings (count) of the SKUs from the numerator vs the SKUs from the denominator. The calculation would be (total count of "numerator" SKUs) / (total count of "numerator" SKUs + total count of "denominator" SKUs).

Column	Type	Description
kpi_file_id	varchar(24)	Unique ID of the KPI file
sku_catalog_id	varchar(24)	Unique ID of the SKU catalog
kpi_file_name	varchar(50)	Name of the KPI file
kpi_name	varchar(255)	Name of the KPI
kpi_type	varchar(20)	Type of the KPI
sku_name	varchar(255)	Name of the SKU
operator	varchar(50)	Operator used to calculate the KPI
index	smallint	Index of the sku_name in the KPI calculation order

Table missionsdata_image_recognition

Contains the answers for completed missions with image recognition. It contains references to the mission, the mission's store and the campaign of the mission. Question related fields are question id, question (content), question type and the answer.

This table is populated only from image recognition campaigns

It contains two additional columns compared to the missionsdata table: photo_urls and photo_markup_urls

both columns are populated for KPI fields calculated by the image recognition algorithm. The photos in these columns are the photos used to calculate the answer of the KPI question. Only number and checkbox fields are defined as KPI fields

This table also contains photo and multiphotos fields and their answer.

Column	Type	Description
mission_data_id	varchar(24)	Unique id of the mission data
question_id	varchar(40)	Id of the question
question_type	varchar(255)	Supported type: select buttons | select | number | textarea | text | star rating | select multi | checkbox | auto complete | select buttons multi | catalog | tel | ranking | productcheck | multiple choice | formula | formulaadvanced | photo | multiphotos
question	text	Question content
answer	text	Answer to the question
slide_number	tinyint	Page number
question_number	tinyint	Ordinal number of the question in the page
campaign_id	varchar(24)	Unique id of the associated campaign
campaign_title	varchar(255)	The campaign title
mission_id	varchar(24)	Unique id of the mission
store_id	varchar(24)	Unique id of associated store
photo_urls	varchar(255)	List of photo urls of the photo field used to calculate the image recognition result
photo_markup_urls	varchar(255)	List of photo markup urls of the photo field used to calculate the image recognition result
answer_idx	tinyint(3,0)	Answer index
_lmt	timestamp	Mission's data last update date
_ect	timestamp	Mission's data creation date
tenant	varchar(24)	Tenant name

Table skus_image_recognition

This table provides information about the SKUs being tracked with the image recognition algorithm.

Column	Type	Description
sku_id	varchar(24)	Unique ID of the SKU
name	varchar(255)	Name of the SKU
category	varchar(100)	Category of the SKU
country	varchar(80)	Country of the SKU
brand	varchar(24)	Brand of the SKU
sub_brand	varchar(100)	Sub-brand of the SKU
manufacturer	varchar(100)	Manufacturer of the SKU
bundle	boolean	Indicates whether the SKU is part of a bundle
bundable	boolean	Indicates whether the SKU can be bundled with other SKUs
_ect	timestamp	Creation date of the SKU record
_lmt	timestamp	Last update date of the SKU record

An Inventory is a custom data structure to manage and use data in a similar way as in a spreadsheet or database directly from the YOOBIC Platform. Each inventory has a defined structure that rely on the same fields as in a YOOBIC campaign.

Table inventory

Column	Type	Description
inventory_id	varchar(24)	Unique id of the inventory
description	text	The inventory description
name	varchar(255)	The inventory name
title	varchar(255)	The inventory title
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

Table indexes:

• PRIMARY KEY (inventory,tenant)

• INDEX tenant

Table inventory_data

Contains the data of each dataset (legacy name: inventory)

Column	Type	Description
inventory_data_id	varchar(24)	Unique id of the dataset instance
inventory_id	nvarchar(24)	Unique id of the dataset the instance is related to
user_id	nvarchar(24)	User if of the user who created the instance
question_id	nvarchar(150)	Unique id of the field of the dataset
question	nvarchar(255)	Title of the field of the dataset
answer	text	Unique id of the plan
_ect	timestamp	Creation date
_lmt	timestamp	Last update date

Table indexes:

• PRIMARY KEY (inventory_data_id,tenant,inventory_id,question_id,answer_idx)

• INDEX user_id

• INDEX store_id

• INDEX question_id

• INDEX tenant

Table inventory_product

Contains the data of the catalog fields from datasets (legacy name: inventory)

Column	Type	Description
inventory_data_id	varchar(24)	Unique id of the dataset instance
inventory_id	nvarchar(24)	Unique id of the dataset the instance is related to
question_id	nvarchar(40)	Unique id of the field of the dataset
product_id	nvarchar(24)	Product id of the product selected in the catalog field for this insance for this question
quantity	int	Quantity of the product selected

This table contains sections of learning paths, including their titles and orders.

Table learning_path_sections

Column	Type	Description
section_id	varchar(36)	Unique ID of the section
learning_path_id	varchar(24)	ID of the learning path
section_order	tinyint unsigned	Order of the section
title	varchar(255)	Title of the section
plan_id	varchar(24)	ID of the plan
plan_order	tinyint unsigned	Order of the plan
tenant	varchar(32)	Tenant name

Primary Key: (section_id, plan_id, tenant)

Indexes:

• learning_path_index on learning_path_id

• tenant_index on tenant

• idx_title on title

Lessons are the activities the users perform during their trainings.

Table lessons

Column	Type	Description
lesson_id	varchar(24)	Unique id of the lesson
title	varchar(255)	Title of the lesson
title_en	varchar(255)	title of the lesson in english based on the translation key
type	varchar(255)	Type of the lesson (currently just lesson)
campaign_id	varchar(24)	Unique id of the campaign
course_id	varchar(24)	Unique id of the course
plan_id	varchar(24)	Unique id of the plan
user_id	varchar(24)	Unique id of the user
status	varchar(40)	Whether the lesson is finished or not
points	decimal(5,2)	Number of points of the lesson
score	json	Number of points of the lesson
badges	json	Array of badges a user has earned during this lesson
validated	tinyint	Whether the lesson is successfull or a failure
duration	decimal(6,2)	Time spent on the lesson (in minutes)
is_quiz	tinyint	True if the lesson_type is one of quizz, timedquizz, confidencequiz, scorm
finished_date	timestamp	Date when the user completed the lesson
lesson_type	nvarchar(255)	Type of the lesson: content, video, quiz, timed quiz, confidence-based assessment, scorm lessons
questions_count	smallint	Number of questions in the lessons
correct_answers	smallint	Number of correct answers in the lesson
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

This table archives lesson data, including titles and scores.

Table lessons_archive

Column	Type	Description
lesson_id	varchar(24)	Unique ID of the lesson
title	varchar(255)	Title of the lesson
type	varchar(255)	Type of the lesson
campaign_id	varchar(24)	ID of the campaign
plan_id	varchar(24)	ID of the plan
course_id	varchar(24)	ID of the course
user_id	varchar(24)	ID of the user
lesson_type	varchar(255)	Type of the lesson
status	varchar(40)	Status of the lesson
points	decimal(7,2)	Points for the lesson
score	json	Score details
questions_count	smallint	Number of questions
correct_answers	smallint	Number of correct answers
validated	tinyint(1)	Indicates if validated
duration	decimal(8,2)	Duration of the lesson
_ect_date	date	Creation date
_lmt	timestamp(3)	Last update date
_ect	timestamp(3)	Creation date
wall_time	timestamp(3)	Wall time
tenant	varchar(32)	Tenant name

Primary Key: (lesson_id, tenant)

Indexes:

• lessons_campaign_id_index on campaign_id

• lessons_plan_id_index on plan_id

• lessons_user_id_index on user_id

• lessons_course_id_index on course_id

• lessons_lmt_status_tenant on (_lmt, status, tenant)

• tenant_index on tenant

The table gather's the most recent answers given by a user in the lesson.

Table lessonsdata

Column	Type	Description
lesson_data_id	varchar(24)	Unique id of the lessondata
campaign_id	varchar(24)	Unique id of the campaign
lesson_id	varchar(24)	Unique id of the lesson
plan_id	varchar(24)	Unique id of the plan
user_id	varchar(24)	Unique id of the user
question_id	varchar(40)	Unique id of a question
question_type	varchar(255)	Type of the question
question	text	The question
question_en	text	Title of the question in english based on the translation key
answer	text	The answer
answer_en	text	Answer of the question in english based on the translation key
page_number	tinyint	The number of the page the question appears in
question_number	number	The number of the question on the page
answer_idx	tinyint	For multiple answers, the position of the answer
validated	boolean	1 if the user answered correctly to the question
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

Table lessonsdata_confidence_quiz

Contains only the latest attempt to a quiz of type confidence based.

Column	Type	Description
lesson_data_id	varchar(24)	Unique id of the lessonsdata of type confidence quiz
question_id	nvarchar(40)	Unique id of the questions of the lesson of type confidence quiz
confidence_level	nvarchar(20)	Level of confidence of the user's answer. Can be low medium or high.

Table lessonsdata_confidence_quiz_history

Contains all the historical data relating to quiz of type Confidence based learning.

Column	Type	Description
lesson_data_id	varchar(24)	Unique id of the lessonsdata of type confidence quiz
question_id	nvarchar(40)	Unique id of the questions of the lesson of type confidence quiz
confidence_level	nvarchar(20)	Level of confidence of the user's answer. Can be low medium or high.

If a user retries a lesson, we keep the data of the last attempt in lessonsdata table. The previous attempt/s will be moved to this table.

Table lessonsdata_history

Column	Type	Description
lesson_data_id	varchar(24)	Unique id of the lessondata
campaign_id	varchar(24)	Unique id of the campaign
lesson_id	varchar(24)	Unique id of the lesson
plan_id	varchar(24)	Unique id of the plan
user_id	varchar(24)	Unique id of the user
question_id	varchar(40)	Unique id of a question
question_type	varchar(255)	Type of the question
question	text	The question
question_en	text	Title of the question in english based on the translation key
answer	text	The answer
answer_en	text	Answer of the question in english based on the translation key
page_number	tinyint	The number of the page the question appears in
question_number	number	The number of the question on the page
answer_idx	tinyint	For multiple answers, the position of the answer
validated	boolean	1 if the user answered correctly to the question
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

Missions are the basic campaign type. The store users will receive missions with fields to complete, for example send a photo of their display or change the location of the new collection in store. The mission creator will define its content from the dashboard, then he will publish it to the appropriate stores. Once the users have completed the mission they will be able to submit it. The managers responsible for the store will then be able to define the mission as compliant (if they deem the answers acceptable) or non compliant (if they believe there is room for improvement). If a mission is evaluated as non compliant, the manager can choose for the user to retake the mission entirely or he can specify which parts of the mission need improving and republish the mission to the store with the rest of the answers already filled in.

Tips: a mission is an entity of a campaign published on a store.

A mission is either available, ongoing or finished.

A finished mission is either "to validate", "compliant" or "not compliant".

• Available : a mission is available as soon as it has been published on a store, and hasn't been started yet by a user.

• Ongoing: as soon as a user starts or loads a mission, the status of the mission goes from "available" to "ongoing" (known as booked under the status field of a mission)

• Finished : once the mission has been submitted, it is finished.

  • To validate: if the mission hasn't been validated yet and marked as "compliant" or "not compliant", or isn't configured to be automatically marked as compliant.
  • Compliant
  • Not compliant

• Scheduled: a mission is scheduled as soon as it has been published on a store and if valid_from date did not reach the current date yet.

• Archived: a mission gets status archived as soon as it’s archived

Table missions

Column	Type	Description
mission_id	varchar(24)	Unique id of the mission
title	varchar(255)	The title of the mission
type	varchar(24)	Mission type
campaign_id	varchar(24)	Unique id of the mission's parent campaign
user_id	varchar(24)	Unique id of the user who performs the mission
creator_id	varchar(24)	Unique id of the mission creator
store_id	varchar(24)	Unique id of associated store
status	varchar(40)	Current status of the mission: NULL, scheduled, booked, finished, archived
valid_from	timestamp	Mission available from
republish_count	int(11)	The number of times the mission was republished
available_on_book	boolean	If true, a new copy of this mission would be created on booking
available_on_finished	boolean	If true, a new copy of this mission would be created on finish
booked_date	timestamp	The date on which the mission was booked to a user
due_date	timestamp	The date by which the mission must be completed
duration	decimal(6,2)	Time spent on the mission (in minutes)
finished_date	timestamp	The date on which the mission was finished
score	JSON	The score of the mission as a JSON object {"title": "my score", "value": 10}
extra_scores	JSON	The extra scores of the mission as a JSON object {"score1": { "title": "my score", "value": 10}}
compliant	tinyint(3,0)	Has the mission been validated by an area manager: NULL
compliant_by_default	boolean	If true, the mission is automatically marked compliant on finish
validated_date	timestamp	The date on which the mission was validated
reason_noncompliant	text	The reason for the mission was unvalidated
republished_with_answers	boolean	Has the mission been repulished with the previous answers after being marked noncompliant
original_mission_id	varchar(24)	If present, the mission_id of the mission that this mission was republished from
original_reason_noncompliant	text	The reason_noncompliant from the original mission that was republished.
action_plan_progress	tinyint	Completion rate of an action plan
validated	boolean	1 if the mission has been validated
skip_validation	boolean	1 if the mission doesn't need to be validated
_lmt	timestamp	Mission's last update date
_ect	timestamp	Mission's creation date
tenant	varchar(24)	Tenant name

Table indexes:

• PRIMARY KEY (mission_id,tenant)

• INDEX (campaign_id,store_id)

• INDEX store_id

• INDEX status

• INDEX _lmt

• INDEX finished_date

• INDEX compliant

• INDEX validated

• INDEX valid_from

• INDEX creator_id

• INDEX (_ect,validated_date,compliant_by_default)

• INDEX tenant

Table mission_action_plans

Contains all the missions of type action plan

Column	Type	Description
mission_id	varchar(24)	Unique id of the mission
campaign_id	varchar(24)	Unique id of the mission's parent campaign
owner_id	varchar(24)	Unique id of the quick task creator
title	varchar(255)	The title of the task
due_date	timestamp	Due date of the quick task
priority	tinyint	Priority level of the quick task between 1 (high) and 4 (low)
action_number	smallint	Order of the task
action_title	nvarchar(255)	Title of the task
finished	boolean	True if the quick task is completed
finished_date	timestamp	The date on which the quick task was finished
action_due_date	timestamp	Due date of the task
assigned_user_id	nvarchar(24)	Unique Id of the assigned user
is_photo_required	boolean	True if a picture is required to complete the quick task
has_photo	boolean	true if a picture is attached to the quick task
_ect	timestamp	Creation date

View missions_all

Contains data about the mission's progress, status, analysis status and compliance

Column	Type	Description
mission_id	varchar(24)	Unique id of the mission
title	varchar(255)	The title of the mission
campaign_id	varchar(24)	Unique id of the mission's parent campaign
campaign_title	varchar(255)	The campaign title
campaign_published	timestamp	Campaign publication date
user_id	varchar(24)	Unique id of the user who performs the mission
creator_id	varchar(24)	Unique id of the mission creator
store_id	varchar(24)	Unique id of associated store
finished_date	timestamp	The date on which the mission was finished
validated_date	timestamp	The date on which the mission was validated
booked_date	timestamp	The date on which the mission was booked to a user
booked_until	timestamp	The last date on which the mission was booked to a user
valid_from	timestamp	Mission available from
validated	tinyint(1)	Has the mission been validated by an area manager: N ULL
skipValidation	tinyint(1)	Indicator if to skip the validation
status	varchar(40)	Current status of the mission: NULL, scheduled, booked, finished, archived
type	varchar(24)	Mission type
progress	varchar(9)	The progress of the mission: finished or available
analyzed	varchar(11)	If the mission is analyzed or not: analyzed, to validate
compliancy	varchar(11)	If the mission compliant or not: compliant, not compliant
reactivity_store	decimal(42,4)	The time it took to the store to finish the mission (in hours)
reactivity_manager	decimal(24,4)	The time it took for the manager to validate the mission (in hours)
region	varchar(255)	Store region
store_title	varchar(255)	The store title
_lmt	timestamp	Mission's last update date
_ect	timestamp	Mission's creation date
tenant	varchar(24)	Tenant name

Table mission_todos

Contains all the missions of type Quick Tasks

Column	Type	Description
mission_id	varchar(24)	Unique id of the mission
title	varchar(255)	The title of the mission
type	varchar(24)	Mission type
user_id	varchar(24)	Unique id of the user who performs the mission
creator_id	varchar(24)	Unique id of the mission creator
campaign_id	varchar(24)	Unique id of the mission's parent campaign
store_id	varchar(24)	Unique id of associated store
status	varchar(40)	Current status of the mission: NULL, scheduled, booked, finished, archived
valid_from	timestamp	Mission available from
republish_count	int	The number of times the mission was republished
available_on_book	boolean	If true, a new copy of this mission would be created on booking
available_on_finish	boolean	If true, a new copy of this mission would be created on completion
booked_date	timestamp	The date on which the mission was booked to a user
due_date	timestamp	The date by which the mission must be completed
duration	DECIMAL(6,2)	Time spent on the mission (in minutes)
finished_date	timestamp	The date on which the mission was finished
score	json	The score of the mission as a JSON object {"title": "my score", "value": 10}
extra_scores	json	The extra scores of the mission as a JSON object {"score1": { "title": "my score", "value": 10}}
validated	boolean	True if the mission has been validated
compliant	boolean	Has the mission been validated by an area manager: NULL
skip_validation	boolean	True if the mission doesn't need to be validated
compliant_by_default	boolean	If true, the mission is automatically marked compliant on finish
validated_date	timestamp	The date on which the mission was validated
validated_username	nvarchar(255)	User who validated the mission
reason_noncompliant	text	The reason for the mission was unvalidated
republished_with_answers	boolean	Has the mission been repulished with the previous answers after being marked noncompliant
original_mission_id	nvarchar(24)	If present, the mission_id of the mission that this mission was republished from
original_reason_noncompliant	text	The reason_noncompliant from the original mission that was republished.
action_plan_progress	tinyint	Completion rate of an action plan
_lmt	timestamp	Mission's last update date
_ect	timestamp	Creation date

Table mission_workflows

Contains the information about each individual step of workflows, with the date when it has been created and completed, its title and the user who completed it.

Column	Type	Description
mission_id	varchar(24)	Unique id of the mission
title	varchar(255)	The title of the mission
type	varchar(24)	Mission type
user_id	varchar(24)	Unique id of the user who performs the mission
creator_id	varchar(24)	Unique id of the mission creator
campaign_id	varchar(24)	Unique id of the mission's parent campaign
store_id	varchar(24)	Unique id of associated store
status	varchar(40)	Current status of the mission: NULL, scheduled, booked, finished, archived
valid_from	timestamp	Mission available from
republish_count	int	The number of times the mission was republished
available_on_book	boolean	If true, a new copy of this mission would be created on booking
available_on_finish	boolean	If true, a new copy of this mission would be created on completion
booked_date	timestamp	The date on which the mission was booked to a user
due_date	timestamp	The date by which the mission must be completed
duration	DECIMAL(6,2)	Time spent on the mission (in minutes)
finished_date	timestamp	The date on which the mission was finished
score	json	The score of the mission as a JSON object {"title": "my score", "value": 10}
extra_scores	json	The extra scores of the mission as a JSON object {"score1": { "title": "my score", "value": 10}}
validated	boolean	True if the mission has been validated
compliant	boolean	Has the mission been validated by an area manager: NULL
skip_validation	boolean	True if the mission doesn't need to be validated
compliant_by_default	boolean	If true, the mission is automatically marked compliant on finish
validated_date	timestamp	The date on which the mission was validated
validated_username	nvarchar(255)	User who validated the mission
reason_noncompliant	text	The reason for the mission was unvalidated
republished_with_answers	boolean	Has the mission been repulished with the previous answers after being marked noncompliant
original_mission_id	nvarchar(24)	If present, the mission_id of the mission that this mission was republished from
original_reason_noncompliant	text	The reason_noncompliant from the original mission that was republished.
action_plan_progress	tinyint	Completion rate of an action plan
state	nvarchar(50)	Status of the step, can be booked, available or finished
step_title	nvarchar(255)	Title of the step in the workflow
_lmt	timestamp	Mission's last update date
_ect	timestamp	Creation date

Table workflows_history

Contains the information about each individual step of workflows, with the date when it has been created and completed, its title and the user who completed it.

Column	Type	Description
mission_id	varchar(24)	Unique id of the mission
step_id	varchar(24)	Unique id of the step of the workflow
state	nvarchar(255)	State of the step of the workflow (can be null, booked, or finished)
step_title	nvarchar(255)	Title of the step in the workflow
user_id	varchar(24)	Unique if of the owner of the step of the workflow
date	timestamp	Date when the step has been completed
step_number	tinyint	Step number
creation_step_date	timestamp	Date when the step was created

Contains the answers for completed missions. It contains references to the mission, the mission's store and to the campaign of the mission.
Question related fields are question id, question (content), question type and the answer.
Note - filtering by questions is not supported.

Table missionsdata

Column	Type	Description
mission_data_id	varchar(24)	Unique id of the mission data
campaign_id	varchar(24)	Unique id of the associated campaign
campaign_title	varchar(255)	The campaign title
mission_id	varchar(24)	Unique id of the mission
store_id	varchar(24)	Unique id of associated store
question_id	varchar(40)	Id of the question
question	text	Question content
slide_number	tinyint	Page number
question_number	tinyint	Ordinal number of the question in the page
question_type	varchar(255)	Supported type: select buttons | select | number | textarea | text | star rating | select multi | checkbox | auto complete | select buttons multi | catalog | tel | ranking | productcheck | multiple choice | formulaadvanced
answer	text	Answer to the question
answer_idx	tinyint(3,0)	Answer index
validation_comments	text	The comment at field level added during the manual validation flow
is_invalid	boolean	1 if the field is marked as not satisfactory during the manual validation flow
value_type	varchar(255)	Is satisfactory or unsatisfactory or null based on the form field configuration
_lmt	timestamp	Mission's data last update date
_ect	timestamp	Mission's data creation date
tenant	varchar(24)	Tenant name

Table indexes:

• PRIMARY KEY (mission_data_id,question_id,answer_idx,tenant)

• INDEX campaign_id

• INDEX (mission_id,question_id)

• INDEX (store_id,question(100))

• INDEX answer(100)

• INDEX tenant

• INDEX _lmt

• INDEX _ect

It contains the result of price detection per product and mission.

Table missionsdata_pricecheck

Column	Type	Description
product_id	varchar(24)	Unique id of the mission data
price	decimal(5,2)	Price
campaign_id	varchar(24)	Unique id of the associated campaign
mission_id	varchar(24)	Unique id of the mission
question_id	varchar(40)	Id of the question
edited	boolean	True if the price was manually edited
barcode_duration	decimal(6,3)	Time taken to the barcode detection
price_duration	decimal(6,3)	Time taken to the price detection
retry	smallint	Number of retries
tenant	varchar(24)	Tenant name

Table missionsdata_product

Contains the data of the catalog fields from missionsdata

Column	Type	Description
product_id	varchar(24)	Product id of the product selected in the catalog field for this missionsdata
quantity	int	Quantity of the product selected
campaign_id	varchar(24)	Unique id of the associated campaign
question_id	varchar(40)	Id of the question
mission_id	varchar(24)	Unique id of the mission
mission_data_id	varchar(24)	Unique id of the missionsdata

This table contains moderation data, including flagged content and deletion details.

Table moderation

Column	Type	Description
moderation_id	varchar(24)	Unique ID of the moderation record
user_id	varchar(24)	ID of the user
comment_id	varchar(24)	ID of the comment
entity_id	varchar(24)	ID of the entity
entity_type	varchar(100)	Type of the entity
url	varchar(255)	URL of the entity
input	varchar(255)	Input data
is_flagged	tinyint(1)	Indicates if flagged
duration_seconds	decimal(6,2)	Duration in seconds
error	varchar(100)	Error details
is_deleted_entity	tinyint(1)	Indicates if entity is deleted
deletion_date	timestamp(3)	Deletion date
deleted_by	varchar(24)	ID of the user who deleted
_lmt	timestamp(3)	Last update date
_ect	timestamp(3)	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (moderation_id, tenant)

Indexes:

• tenant_index on tenant

Contains information coming from the news feed tab

Table news

Column	Type	Description
news_id	varchar(24)	Unique id of the news
user_id	varchar(24)	Unique id of a user who published the news
title	varchar(255)	The title of news
description	text	The html content of the news feed
description_sanitize	text	Text of the content without html
views	smallint	News item views count
likes	smallint	News item likes count
authorised_viewers	smallint	Number of users allowed to view this news feed
image	varchar(24)	Link to uploaded image
tags	json	Tags of the newsTags (#example) added to the post
start_date	timestamp	Date relevant for the publication of the post. This is a separate field than the ect which might have different values.
event_id	varchar(24)	If the post was created from an Event, this is the id of the related Event
_lmt	timestamp	News item last update date
_ect	timestamp	News item creation date
tenant	varchar(24)	Tenant name

This table maps news items to audiences, including authorized users.

Table news_audience

contains information about uploaded photos and photos taken as part of a mission and its relations to the mission.

Table photos

Column	Type	Description
photo_id	varchar(24)	Unique id of the photo
mission_id	varchar(24)	Unique id of the mission
campaign_id	varchar(24)	Unique id of the campaign
mission_data_id	varchar(24)	Unique id of the mission data
store_id	varchar(24)	Unique id of the store
title	varchar(255)	The photo title
url	varchar(255)	The url to the image
markup_url	varchar(255)	The markup url to the image
question_id	varchar(24)	Unique id of the question
created_date	timestamp	Creation date
phash	varchar(255)	Perceptual hash (fingerprint)
tags	json	Tags assigned to the photo
short_desc	varchar(255)	Short description of the product
description	text	Description of the product
question_type	nvarchar(255)	Type of field used in the campaign from which the photo was submitted
slide_number	tinyint	Page of the field of the campaign
question_number	smallint	Question number in the page of the field of the campaign
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

Table indexes:

• PRIMARY KEY (photo_id,tenant)

• INDEX created_date

• INDEX title

• INDEX question_id

• INDEX store_id

• INDEX (mission_id, question_id)

• INDEX mission_data_id

• INDEX campaign_id

• INDEX tenant

View photos_tags

Maps photo's tags to rows, so that each row includes photo id with a corresponding tag

Column	Type	Description
photo_id	varchar(24)	The photo unique id
tag	longtext	Photo tag

A plan is the main description of a course that's assigned to users.

Table plans

Column	Type	Description
plan_id	varchar(24)	Unique id of the plan
title	varchar(255)	The plan title
title_en	varchar(255)	Title of the plan in english based on the translation key
description	text	Description of the plan
enable_journey	boolean	Journey parameter activated or not
lessons_count	number	Number of lessons in the course
finished_count	number	Number of users that completed the course
average_completed_lesson	number	Average progression in the course
creator_id	nvarchar(24)	User id of the creator of the plan
archived	boolean	1 if the plan is archived
type	nvarchar(30)	Null if the plan is a learning module.
plan_id_original	nvarchar(24)	Id of the plan on which a battle was created.
category_id	nvarchar(24)	Id of the category of the course
competency_id	nvarchar(24)	Id of the competency of the course
authorised_users_count	int	When discover is activated, this is the number of users who are authorised to access the course based the authorised groups the course category authorization. When
tags	json	Tag of the plan
background_image	nvarchar(255)	Image of the plan
is_active	boolean	1 if the plan is active
is_discoverable	boolean	1 if the plan can be discovered by users in the discover section
available_points	smallint	Number of points available in the plan
is_rating_enabled	boolean	Indication if rating is enabled for the plan (value: 1) or not (value: 0). Enable the users to rate a course. The rating is available in the course table
is_questions_enabled	boolean	Indication if questions are enabled for the plan (value: 1) or not (value: 0). Enable users to ask questions about the course. Questions are available in the question table
is_featured	boolean	Indication if featured option is enabled for the plan (value: 1) or not (value: 0). Enable to pin a course in the Discover section
time_constraint_mode	nvarchar(15)	Indication if time constraint mode is enabled for the plan (value: 1) or not (value: 0). The user must complete the course within the specified time constraint
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

This table archives plan data, including titles and descriptions.

Table plans_archive

Column	Type	Description
plan_id	varchar(24)	Unique ID of the plan
creator_id	varchar(24)	ID of the creator
title	varchar(255)	Title of the plan
title_en	varchar(255)	Title in English
description	text	Description of the plan
finished_count	smallint unsigned	Number of finished plans
lessons_count	smallint unsigned	Number of lessons
enable_journey	tinyint(1)	Indicates if journey is enabled
archived	tinyint(1)	Indicates if archived
average_completed_lesson	decimal(5,2)	Average completed lessons
type	varchar(30)	Type of the plan
plan_id_original	varchar(24)	Original plan ID
category_id	varchar(24)	Category ID
competency_id	varchar(24)	Competency ID
authorised_users_count	int unsigned	Number of authorized users
tags	json	Tags associated with the plan
background_image	varchar(255)	Background image
is_active	tinyint(1)	Indicates if active
is_discoverable	tinyint(1)	Indicates if discoverable
available_points	smallint unsigned	Available points
is_rating_enabled	tinyint(1)	Indicates if rating is enabled
is_questions_enabled	tinyint(1)	Indicates if questions are enabled
is_featured	tinyint(1)	Indicates if featured
time_constraint_mode	varchar(15)	Time constraint mode
_lmt	timestamp(3)	Last update date
_ect	timestamp(3)	Creation date
wall_time	timestamp(3)	Wall time
tenant	varchar(32)	Tenant name

Primary Key: (plan_id, tenant)

Indexes:

• plans_lmt_index on _lmt

• plans_title_index on title

• plans_category_index on category_id

• plans_type_index on type

• tenant_index on tenant

Products represent usually physical products and are organised by catalog

Table products

Column	Type	Description
product_id	varchar(24)	Unique id of the product
title	varchar(255)	The product title
price	decimal(15,2)	The product price
reference	varchar(255)	The product reference (SKU)
extra_references	text	Additional references of the product
image	varchar(255)	The url to the image
short_desc	varchar(255)	Short description of the product
description	text	Description of the product
catalog_id	varchar(24)	Unique id of the catalog
tags	json	Tags assigned to the product
manufacturer	varchar(255)	The manufacturer name of the product
brand	varchar(255)	The brand name of the product
category	varchar(255)	The category name of the product
images	json	The images associated with this product
out_of_stock	boolean	Whether or not product is available
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

Questions are a Social Learning feature, allowing users to learn tips / expertise from each other. They can ask questions and others can reply to them. Admins and managers can “verify” some answers to make the response official. Essentially, Questions section acts as a forum where knowledge can be shared across the company.

Table questions

Column	Type	Description
question_id	varchar(24)	Unique id of the question
title	varchar(255)	Title of the question
description	text	Description of the question
user_id	varchar(24)	User id creating the question
is_wiki	boolean	Whether or not this exists in the knowledge base
is_verified	boolean	Whether or not this is a verified question
likes	smallint	Likes count
answers	smallint	Number of answers
bookmarks	smallint	Number of users who bookmarked the question
tags	json	List of tags
image	varchar(255)	The url to the image
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

Contains a list of regions where stores are located, and relevant information for each region.

Table regions

Column	Type	Description
region_id	varchar(24)	Region id
tenant	varchar(24)	Tenant name
region	varchar(255)	Region name

Salesdata allows integration of external sales data or kpi per location, and optionally a category.

Periods can be: yearly, monthly, weekly, daily, hourly.

Salesdata uniqueness is determined by:

• store_id

• reporting_date

• title

• category

• value_frequency

Table salesdata

Column	Type	Description
salesdata_id	varchar(24)	Unique id of the salesdata
store_id	varchar(24)	Unique id of the store
reporting_date	timestamp	Reporting date
title	varchar(255)	The salesdata report title
category	varchar(255)	The product category
value	decimal(15,2)	The product value
value_currency	char(4)	The product currency
value_frequency	varchar(24)	The product measuring frequency : yearly / monthly / weekly / daily / hourly
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

Table scorm_registrations

Each time a user starts a SCORM course, it creates in this table a scorm_registration.
A SCORM registration is the equivalent of a course_id for a SCORM content.

Column Name	Data Type	Description
course_id	VARCHAR(24)	The unique identifier for the course. This is an alphanumeric string with a maximum length of 24 characters. Each course has a unique course_id.
scorm_registration_id	VARCHAR(36)	The unique identifier for the SCORM registration associated to the course_id. This is an alphanumeric string with a maximum length of 36 characters. Each SCORM registration has a unique scorm_registration_id.
score_scaled	TINYINT UNSIGNED	The score scaled for the course content. It can be a value between 0 to 100. It can be null if there is no score set up in the lesson.
total_seconds_tracked	SMALLINT UNSIGNED	The total number of seconds tracked for the course content. This field can contain any positive integer value up to 65535 (maximum value of SMALLINT UNSIGNED). This field can be NULL indicating that no time has been tracked.
first_access_date	TIMESTAMP(3)	The timestamp of the first access to the course. This field can be NULL indicating that the course has not been accessed yet.
last_access_date	TIMESTAMP(3)	The timestamp of the last access to the course. This field can be NULL indicating that the course has not been accessed yet.
created_date	TIMESTAMP(3)	The timestamp when the SCORM registration was created. This field can be NULL indicating that the creation date is not specified.
completed_date	TIMESTAMP(3)	The timestamp when the course was completed. This field can be NULL indicating that the course has not been completed yet.
scorm_registrations_course_id	VARCHAR(36)	The unique identifier for the associated SCORM cloud object. This is an alphanumeric string with a maximum length of 36 characters. Each SCORM cloud course has a unique scorm_registrations_course_id.
scorm_registrations_course_title	VARCHAR(255)	The SCORM title of the course. This is a string with a maximum length of 255 characters. The title can be NULL indicating that the course title is not specified or the course doesn't have a title.
_lmt	TIMESTAMP(3)	The timestamp of the last modification to the registration data. This field can be NULL indicating that no modification has been made after creation.
tenant	VARCHAR(32)	The identifier for the tenant. This is a string with a maximum length of 32 characters.

This table contains SKU catalog information, including names and versions.

Table sku_catalogs

Column	Type	Description
sku_catalog_id	varchar(24)	Unique ID of the SKU catalog
name	varchar(255)	Name of the catalog
version	smallint	Version of the catalog
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (sku_catalog_id, tenant)

Indexes:

• catalogs_tenant_index on tenant

This table contains workflow steps, including titles and types.

Table step_workflows

Column	Type	Description
campaign_id	varchar(24)	ID of the campaign
step_id	varchar(36)	Unique ID of the step
step_number	tinyint unsigned	Step number
step_title	varchar(255)	Title of the step
step_type	varchar(24)	Type of the step
_lmt	timestamp(3)	Last update date
_ect	timestamp(3)	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (campaign_id, step_id, tenant)

Indexes:

• tenant_index on tenant

Table Store Ratings

Contains the list of the stores and their Google, Yelp or Tripadvisor rating

Column	Type	Description
store_rating_id	varchar(24)	The store rating's unique id
store_id	varchar(24)	The store unique id
store_id_yelp	varchar(100)	Unique id the site in Yelp
store_id_tripadvisor	varchar(100)	Unique id of the site in Trip Advisor
store_id_google	varchar(100)	Unique id of the site in Google
store_url_yelp	varchar(100)	URL of the site in Yelp
store_url_tripadvisor	varchar(100)	URL of the site in Trip Advisor
store_url_google	varchar(100)	URL of the site in Google
review_count_yelp	mediumint	Number of reviews in Yelp
review_count_tripadvisor	mediumint	Number of reviews in Trip Advisor
review_count_google	mediumint	Number of reviews in Google
total_review_count	mediumint	Total number of reviews
average_rating_yelp	decimal(6,1)	Average rating in Yelp
average_rating_tripadvisor	decimal(6,1)	Average rating in Trip Advisor
average_rating_google	decimal(6,1)	Average rating in Google
total_average_rating	decimal(6,1)	Average rating of the site
created_date	timestamp	Creation date of the store rating
updated_date	timestamp	Last update date of the store rating

Stores always belong to specific Store Type.
Store Types determine which stores users can potentially see.
They will be linked to one or several user groups.
Store types are used to have a better view of where the stores are (regions), or what type they belong to (business unit).
Stores types are handy in the application when publishing campaigns to multiple stores.

Table store_types

Column	Type	Description
store_type_id	varchar(24)	Unique id of the store type
name	varchar(255)	The name of the store type
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

This table contains reviews for stores, including ratings and providers.

Table store_reviews

Column	Type	Description
store_review_id	varchar(24)	Unique ID of the store review
store_id	varchar(24)	ID of the store
review_id	varchar(100)	ID of the review
provider	varchar(20)	Provider of the review
url	varchar(255)	URL of the review
text	varchar(255)	Text of the review
time_created	timestamp	Time created
rating	tinyint unsigned	Rating of the review
created_date	timestamp	Date created
updated_date	timestamp	Date updated
tenant	varchar(32)	Tenant name

Primary Key: (store_review_id, tenant)

Indexes:

• tenant_index on tenant

This table maps store types to groups.

Table store_type_groups

Column	Type	Description
store_type_id	varchar(24)	ID of the store type
group_id	varchar(100)	ID of the group
tenant	varchar(32)	Tenant name

Primary Key: (store_type_id, group_id)

Indexes:

• group_id_index on (group_id, tenant)

• tenant_index on tenant

Stores are a very important part of the application. They represent physical locations of stores. They are the entities which receive missions (not the users). The users associated to the stores will be able to see their missions and carry them out if they have the correct roles. Each store belongs to a specific Store Types. If you don't know what is a Store Type, please refer to the Store Types section which will provide you with a detailed explanation.

In the front end of the application we now call them sites, to use a wording that also applies to companies in different industries that do not have frontline locations called stores (but perhaps restaurants, pharmacies etc.). But in the context of the API, we still call these entities stores.

Note - Stores responding to the following criteria are excluded from BI.

• Store which tags contain archive (case insensitive)

Table stores

Column	Type	Description
store_id	varchar(24)	Unique id of the store
store_type	varchar(24)	The id pf the store type
region	varchar(255)	The region of the store
country	varchar(255)	The country of the store
address	varchar(255)	The address of the store
area_level	varchar(255)	The area level of the store
client_id	varchar(255)	The external client id of the store
title	varchar(255)	The title of the store
latitude	decimal(11,8)	The latitude of the store
longitude	decimal(11,8)	The longitude of the store
tags	json	The list of tags
info	text	Additional information regarding the store. Supports HTML layout
notification_emails	json	List of email(s) that will be notified when a mission is finished and/or a request is created/finished
contact_email	varchar(255)	Contact's email of the store i.e. store manager's email
contact_phone	varchar(255)	Contact's phone of the store i.e. store manager's phone
contact_name	varchar(255)	Contact's name of the store i.e. store manager's name
properties	json	Extra information displayed on the Store Activity page. This can be split into 4 components: columns, rows, grid, html
vip	boolean	Indicates if the store is a VIP store (a flagship store)
photo	varchar(1000)	A photo of the store
timezone	varchar(40)	The Time Zone allows to display the hourly sales data in the store insights in the local time of the store.
capacity	decimal(10,2)	The limit capacity of the store.
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

The properties field is a json array and can be used to display the following columns, rows, grid, and html. In its most generic format it looks like :

[
    {
        "title": "string",
        "type": "string",
        "headers": [
            "string"
        ],
        "values": [
            "object"
        ]
    }
]

columns

{
    "title" : "KPI S27",
    "type" : "columns",
    "values" : [
        {
            "title" : "Revenues",
            "value" : "1 456 $",
            "isPercent" : false,
            "colorHex" : "#00FF00"
        },
        {
            "title" : "Nb Hours",
            "value" : "7/66",
            "colorHex" : "#B404FF"
        },
        {
            "title" : "QP",
            "value" : 2.8,
            "isPercent" : true,
            "colorHex" : "#B40404"
        }
    ]
}

rows

{
    "title" : "S26 to S27",
    "type" : "rows",
    "values" : [
        {
            "title" : "Revenues",
            "value" : "14 647 $",
            "delta" : "+82.5 %",
            "colorHex" : "#B40404"
        },
        {
            "title" : "Clients",
            "value" : "1 753",
            "delta" : "-10.3 %",
            "colorHex" : "#B40404"
        },
        {
            "title" : "Basket",
            "value" : "8.4 $",
            "delta" : "+4.7 %",
            "colorHex" : "#04B404"
        }
    ]
}

grid

{
    "title" : "Hours",
    "type" : "grid",
    "headers" : [
        "Day",
        "Morning",
        "Afternoon",
        "Nb Hours"
    ],
    "values" : [
        {
            "values" : [
                "Monday",
                "9:00",
                "20:00",
                "5/11"
            ],
            "colorHex" : "#000000"
        },
        {
            "values" : [
                "Tuesday",
                "9:00",
                "20:00",
                "2/11"
            ],
            "colorHex" : "#000000"
        },
        {
            "values" : [
                "Wednesday",
                "9:00",
                "20:00",
                "0/11"
            ],
            "colorHex" : "#000000"
        },
        {
            "values" : [
                "Thursday",
                "9:00",
                "20:00",
                "0/11"
            ],
            "colorHex" : "#000000"
        },
        {
            "values" : [
                "Friday",
                "9:00",
                "20:00",
                "0/11"
            ],
            "colorHex" : "#000000"
        },
        {
            "values" : [
                "Saturday",
                "9:00",
                "20:00",
                "0/11"
            ],
            "colorHex" : "#A0A0A0"
        },
        {
            "values" : [
                "Sunday",
                " ",
                " ",
                "0/0"
            ],
            "colorHex" : "#A0A0A0"
        }
    ]
}

html

Expose the data of the custom fields defined for stores.

Table stores_custom_data

Column	Type	Description
store_id	varchar(24)	Id of the store
inventory_id	varchar(24)	Id of the custom model (Inventory table)
field_name	varchar(255)	The custom field name from the custom model (Inventory table)
value	text	The value for the custom field
value_idx	tinyint	For multiple values, the position of the value
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(24)	Tenant name

View stores_active

Displays for each campaign per day if a visit was performed

Column	Type	Description
tenant	varchar(24)	Tenant name
visit	varchar(11)	visited, not visited
date_day	varchar(24)	The day of the visits
campaign_id	varchar(24)	The campaign unique id

View stores_tags

Maps store's tags to rows, so that each row includes store id with a corresponding tag

Column	Type	Description
store_id	varchar(24)	The store unique id
tag	longtext	Store tag

View stores_visited

Displays the number of stores visits per day per campaign

Column	Type	Description
count_stores	bigint(21)	Number of stores visited
date_day	varchar(24)	The day of the visits
campaign_id	varchar(24)	The campaign unique id
tenant	varchar(24)	Tenant name

Displays all the archived stores

Table stores_archive

Column	Type	Description
store_id	varchar(24)	Unique id of the store
store_type	varchar(24)	The id pf the store type
region	varchar(255)	The region of the store
country	varchar(255)	The country of the store
address	varchar(255)	The address of the store
area_level	varchar(255)	The area level of the store
client_id	varchar(255)	The external client id of the store
title	varchar(255)	The title of the store
latitude	decimal(11,8)	The latitude of the store
longitude	decimal(11,8)	The longitude of the store
tags	json	The list of tags
info	text	Additional information regarding the store. Supports HTML layout
notification_emails	json	List of email(s) that will be notified when a mission is finished and/or a request is created/finished
contact_email	varchar(255)	Contact's email of the store i.e. store manager's email
contact_phone	varchar(255)	Contact's phone of the store i.e. store manager's phone
contact_name	varchar(255)	Contact's name of the store i.e. store manager's name
properties	json	Extra information displayed on the Store Activity page. This can be split into 4 components: columns, rows, grid, html
vip	boolean	Indicates if the store is a VIP store (a flagship store)
photo	varchar(1000)	A photo of the store
timezone	varchar(40)	The Time Zone allows to display the hourly sales data in the store insights in the local time of the store.
capacity	decimal(10,2)	Maximum number of customers which can be served at the same time
_ect	timestamp	Creation date
_lmt	timestamp	Last update date
tenant	varchar(24)	Tenant name

This table contains information about tasks, including titles and descriptions.

Table tasks

Column	Type	Description
task_id	varchar(24)	Unique ID of the task
creator_id	varchar(24)	ID of the creator
owner_id	varchar(24)	ID of the owner
title	varchar(100)	Title of the task
description	text	Description of the task
task_list_name	varchar(100)	Name of the task list
done	tinyint(1)	Indicates if the task is done
_lmt	timestamp	Last update date
_ect	timestamp	Creation date
tenant	varchar(32)	Tenant name

Primary Key: (task_id, tenant)

Indexes:

• stores_tenant_index on tenant

This table maps tasks to users.

Table tasks_users

Column	Type	Description
task_id	varchar(24)	ID of the task
user_id	varchar(24)	ID of the user
tenant	varchar(32)	Tenant name

Primary Key: (task_id, user_id, tenant)

Indexes:

• user_id_index on user_id

• stores_tenant_index on tenant

Exposes tenant level information.

Table plans

Column	Type	Description
tenant_id	varchar(24)	Unique id of the tenant
name	varchar(64)	The unique tenant name
title	varchar(64)	The tenant title
icon	varchar(255)	The icon of the company
sql_size	decimal(10, 2)	The company's estimated size
has_terms_of_acceptance	boolean	Does company have acceptance terms
terms_of_acceptance	text	Acceptance terms
terms_of_acceptance_lmt	timestamp	Last date modified acceptance terms
